Riptide Series
These slurry pumps can handle hard solids (up to 80 mm for large models). They are an excellent choice for dredging, mining as well as sand and gravel removal work.
- Maximum capacity:Up to 960 m3/hr
- Maximum pressure:Up to 36 m TDH
- Designed for solid concentration:Up to 40%
- Victaulic discharge connections:From 6” up to 10”
- Rating:15 HP up to 150 HP
Applications
Removal of water or slurry out of trenches, agitation and pumping soil water. Pumping and dredging of liquid with solids.

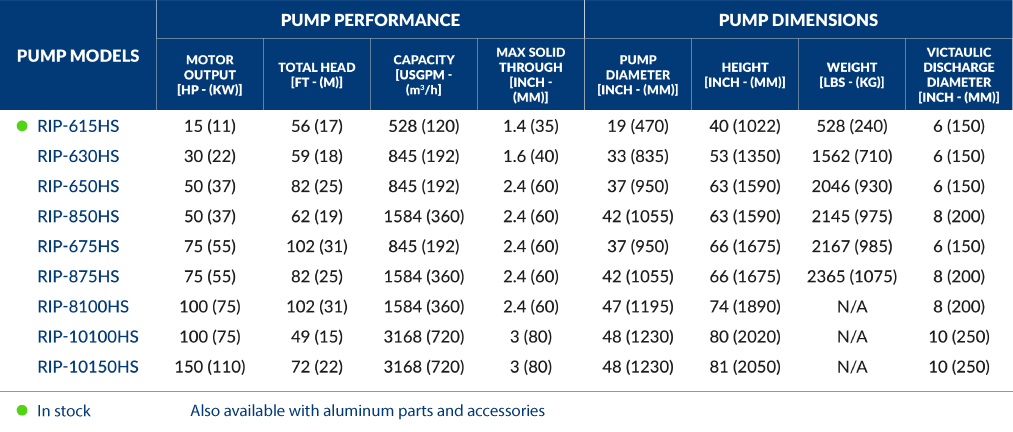

Super heavy duty agitator sand pumps Specifications
| Pump models | Pump performance | Pump dimensions | ||||||
| Motor Output | Total head | Capacity | Max solid through | Pump diameter | Height | Weight | Victaulic discharge diameter | |
| [hp - (kW)] | [ft - (m)] | [Usgpm - (m3/h)] | [Inch - (mm)] | [Inch - (mm)] | [Inch - (mm)] | [Lbs - (kg)] | [Inch - (mm)] | |
| RIP-615HS | 15 (11) | 56 (17) | 528 (120) | 1.4 (35) | 19 (470) | 40 (1022) | 528 (240) | 4 (100) |
| RIP-630HS | 30 (22) | 59 (18) | 845 (192) | 1.6 (40) | 33 (835) | 53 (1350) | 1562 (710) | 6 (150) |
| RIP-650HS | 50 (37) | 82 (25) | 845 (192) | 2.4 (60) | 37 (950) | 63 (1590) | 2046 (930) | 6 (150) |
| RIP-850HS | 50 (37) | 62 (19) | 1584 (360) | 2.4 (60) | 42 (1055) | 63 (1590) | 2145 (975) | 8 (200) |
| RIP-675HS | 75 (55) | 102 (31) | 845 (192) | 2.4 (60) | 37 (950) | 66 (1675) | 2167 (985) | 6 (150) |
| RIP-875HS | 75 (55) | 82 (25) | 1584 (360) | 2.4 (60) | 42 (1055) | 66 (1675) | 2365 (1075) | 8 (200) |
| RIP-8100HS | 100 (75) | 102 (31) | 1584 (360) | 2.4 (60) | 47 (1195) | 74 (1890) | N/A | 8 (200) |
| RIP-10100HS | 100 (75) | 49 (15) | 3168 (720) | 3 (80) | 48 (1230) | 80 (2020) | N/A | 10 (250) |
| RIP-10150HS | 150 (110) | 72 (22) | 3168 (720) | 3 (80) | 48 (1230) | 81 (2050) | N/A | 10 (250) |
