Maverick Series
These pumps, equipped with double-stage impellers, are suitable for applications requiring high head.
- Maximum capacity:Up to 85 m3/hr
- Maximum pressure:Up to 135 m TDH
- Designed for solid concentration:Up to 5%
- Victaulic discharge connections:From 2” up to 6”
- Rating:3 HP up to 60 HP
Applications
Underground mine dewatering, tunnel and caisson dewatering, narrow trenches, manholes, pit and sump dewatering.
Others pumps in this serie
3 hp and under pumps
Diffuser pumps
High-head capacity pumps
High capacity pumps
Super high head pumps
Stainless steel pumps

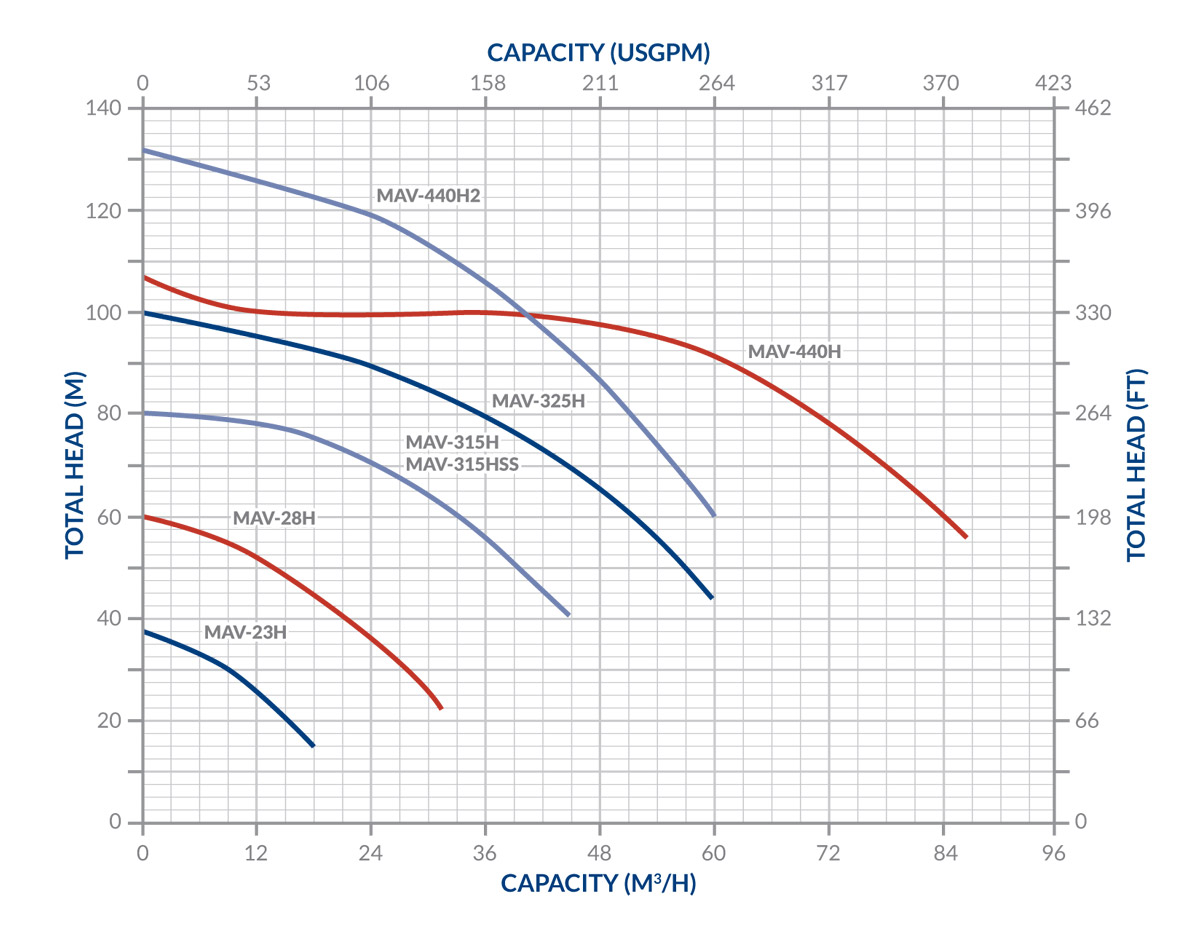

Double-stage pumps Specifications
| Pump models | Pump performance | Pump dimensions | |||||
| Motor Output | Total head | Capacity | Pump diameter | Height | Weight | Victaulic discharge diameter | |
| [hp - (kW)] | [ft - (m)] | [Usgpm - (m3/h)] | [Inch - (mm)] | [Inch - (mm)] | [Lbs - (kg)] | [Inch - (mm)] | |
| MAV-23H | 3 (2.2) | 85 (26) | 53 (12) | 7 (185) | 28 (700) | 99 (45) | 2 (50) |
| MAV-28H | 8 (5.5) | 148 (45) | 79 (18) | 10 (250) | 33 (835) | 220 (100) | 2 (50) |
| MAV-315H | 15 (11) | 213 (65) | 132 (30) | 11 (280) | 37 (950) | 319 (145) | 3 (80) |
| MAV-315HSS* | 15 (11) | 213 (65) | 132 (30) | 11 (280) | 37 (950) | 319 (145) | 3 (80) |
| MAV-325H | 25 (19) | 279 (85) | 132 (30) | 13 (328) | 46 (1160) | 572 (260) | 3 (80) |
| MAV-440H | 40 (30) | 279 (85) | 264 (60) | 17 (430) | 49 (1240) | 924 (420) | 4 (100) |
| MAV-440H2 | 40 (30) | 367 (112) | 132 (30) | 17 (430) | 49 (1240) | 924 (420) | 4 (100) |
| MAV-660H2 | 60 (45) | 443 (135) | 264 (60) | 21 (540) | 60 (1524) | 1227 (557) | 6 (150) |
