Maverick Series

Super high head dewatering is possible with only one pump (head up to 225 m). The structure of these pumps is simple and easy to maintain.

  • Maximum capacity:Up to 195 m3/hr
  • Maximum pressure:Up to 235 m TDH
  • Designed for solid concentration:Up to 5%
  • Victaulic discharge connections:From 4” up to 6”
  • Rating:30 HP up to 200 HP

Applications

Drainage out of sumps, open pits, quarries, tunnels, reclaiming operations, power station constructions and waste.

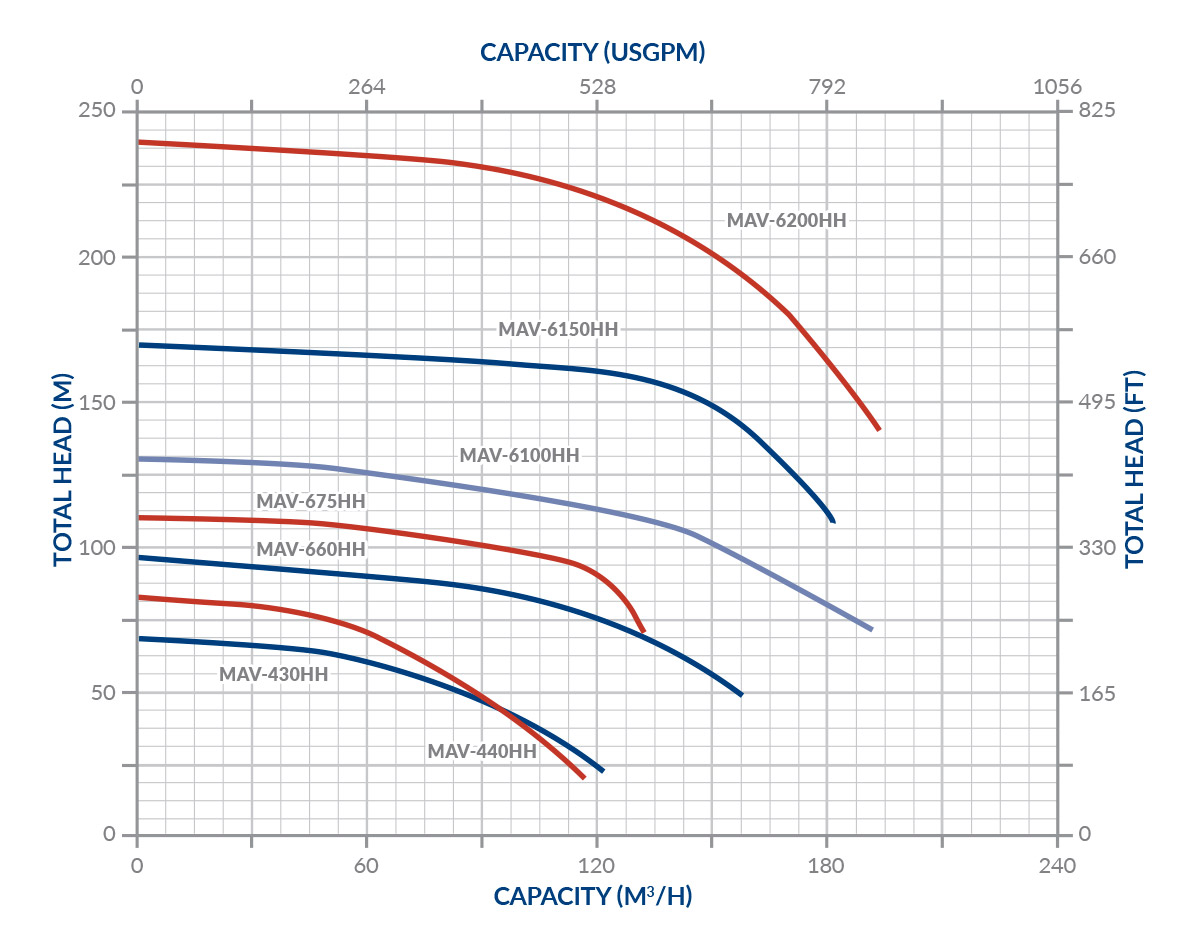

Super high head pumps Specifications

Pump modelsPump performancePump dimensions
Motor OutputTotal headCapacityPump diameterHeightWeightVictaulic discharge diameter
[hp - (kW)][ft - (m)][Usgpm - (m3/h)][Inch - (mm)][Inch - (mm)][Lbs - (kg)][Inch - (mm)]
MAV-430HH30 (22)197 (60)264 (60)18 (455)38 (970)616 (280)4 (100)
MAV-440HH40 (30)230 (70)264 (60)176 (420)44 (1130)836 (380)4 (100)
MAV-660HH60 (45)295 (90)264 (60)21 (542)52 (1315)1067 (485)6 (150)
MAV-675HH75 (55)295 (90)528 (120)21 (542)55 (1385)1199 (545)6 (150)
MAV-6100HH100 (75)394 (120)396 (90)23 (580)61 (1550)2156 (980)6 (150)
MAV-6150HH150 (110)525 (160)528 (150)23 (580)61 (1550)2376 (1080)6 (150)
MAV-6200HH200 (150)656 (200)660 (150)22 (550)69 (1760)2750 (1250)6 (150)
