Maverick Series

These models are designed to meet high-capacity and high-head requirements in specific applications.

  • Maximum capacity:Up to 840 m3/hr
  • Maximum pressure:Up to 110 m TDH
  • Designed for solid concentration:Up to 5%
  • Victaulic discharge connections:From 8” up to 10”
  • Rating:50 HP up to 400 HP

Applications

Open pit mine dewatering, tunnel and caisson dewatering, narrow trenches, manholes, pit and sump dewatering.

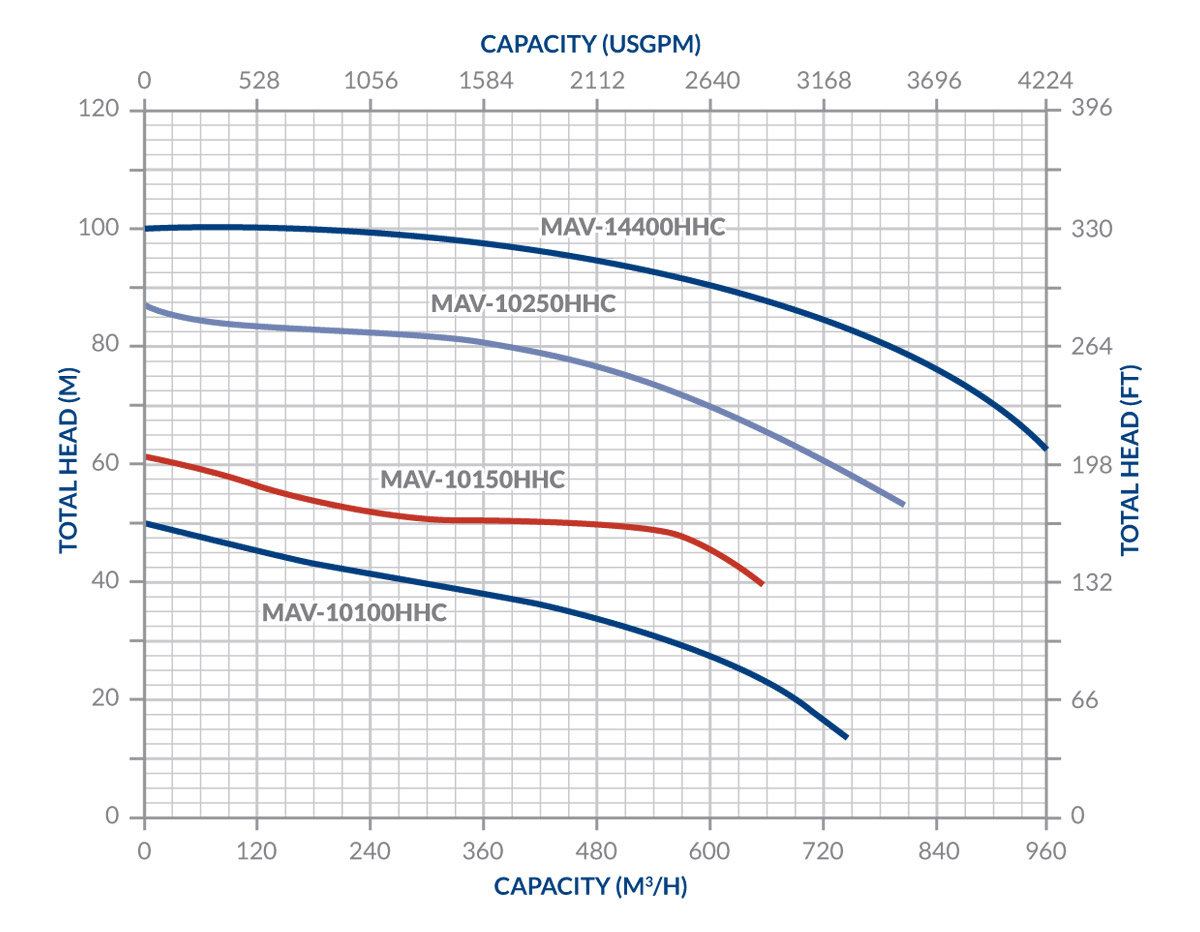

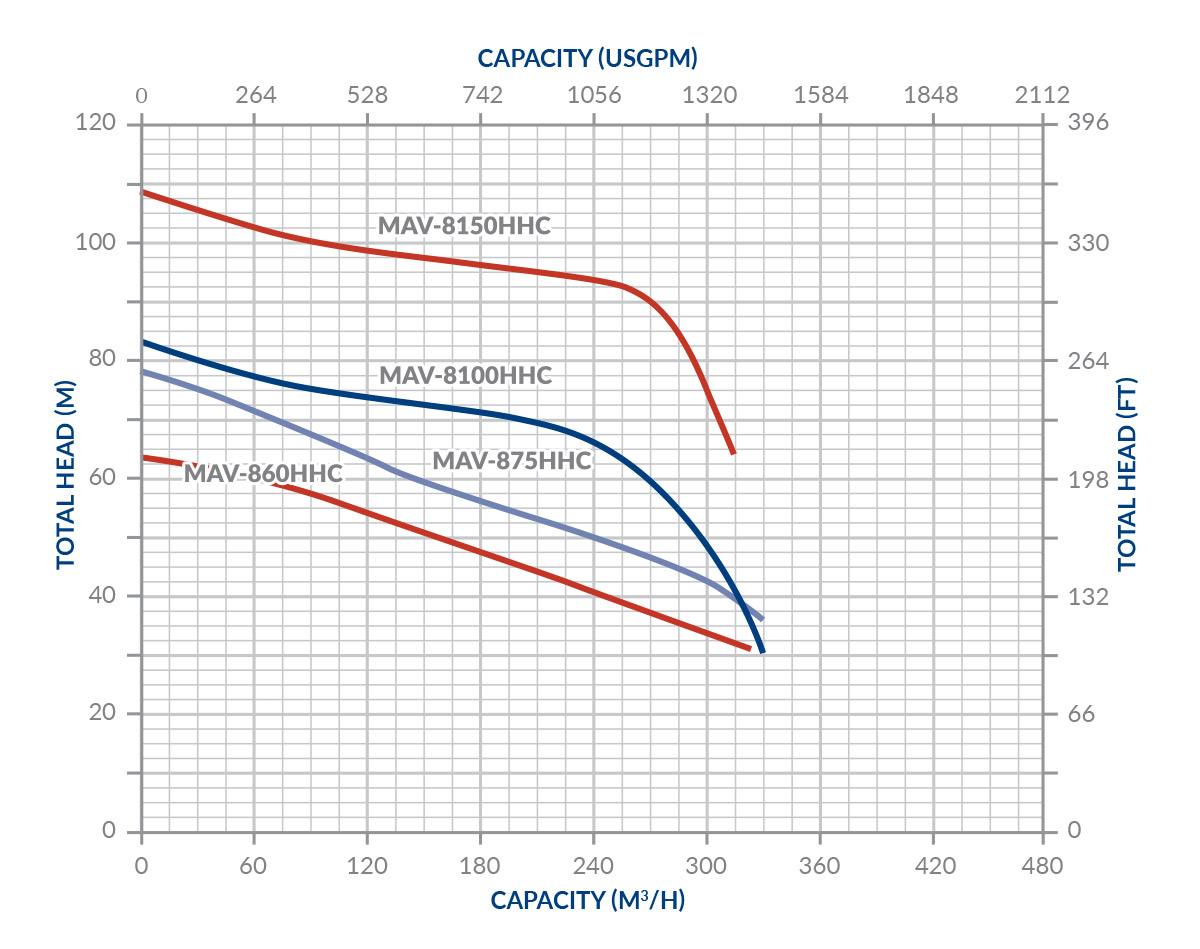

High-head capacity pumps Specifications

Pump modelsPump performancePump dimensions
Motor OutputTotal headCapacityPump diameterHeightWeightVictaulic discharge diameter
[hp - (kW)][ft - (m)][Usgpm - (m3/h)][Inch - (mm)][Inch - (mm)][Lbs - (kg)][Inch - (mm)]
MAV-860HHC60 (45)131 (40)1056 (240)21 (540)52 (1315)1122 (510)8 (200)
MAV-875HHC75 (55)164 (50)1056 (240)21 (540)55 (1385)1232 (560)8 (200)
MAV-8100HHC100 (75)197 (60)1188 (270)23 (583)61 (1550)2134 (970)8 (200)
MAV-8150HHC150 (110)295 (90)1188 (270)23 (583)61 (1550)2376 (1080)8 (200)
MAV-10100HHC100 (75)108 (33)2218 (504)27 (680)63 (1590)2134 (970)10 (250)
MAV-10150HHC150 (110)164 (50)2218 (504)27 (680)63 (1590)2200 (1000)10 (250)
MAV-10250HHC250 (185)230 (70)2640 (600)29 (735)75 (1900)3190 (1450)10 (250)
MAV-14400HHC400 (300)230 (70)3960 (900)40 (1022)109 (2758)9900 (4500)14 (350)
