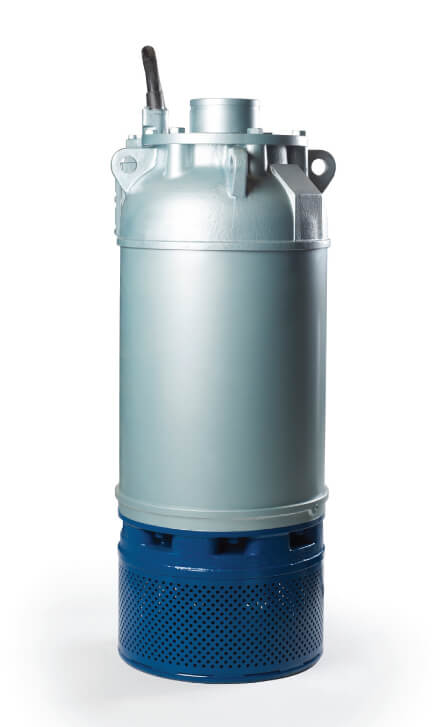

Submersible pumps - Maverick™ series

Super high head pumps

super-high-head-cap-pump

Maximum capacity : Up to 195 m3/hr

Maximum pressure : Up to 235 m TDH

Designed for solid concentration : Up to 5%

Victaulic discharge connections : From 4" to 6"

Rating : 30 HP to 200 HP

Applications
Drainage out of sumps, open pits, quarries, tunnels, reclaiming operations, power station constructions and waste.

Super high head dewatering is possible with only one pump (head up to 225 m). The structure of these pumps is simple and easy to maintain.

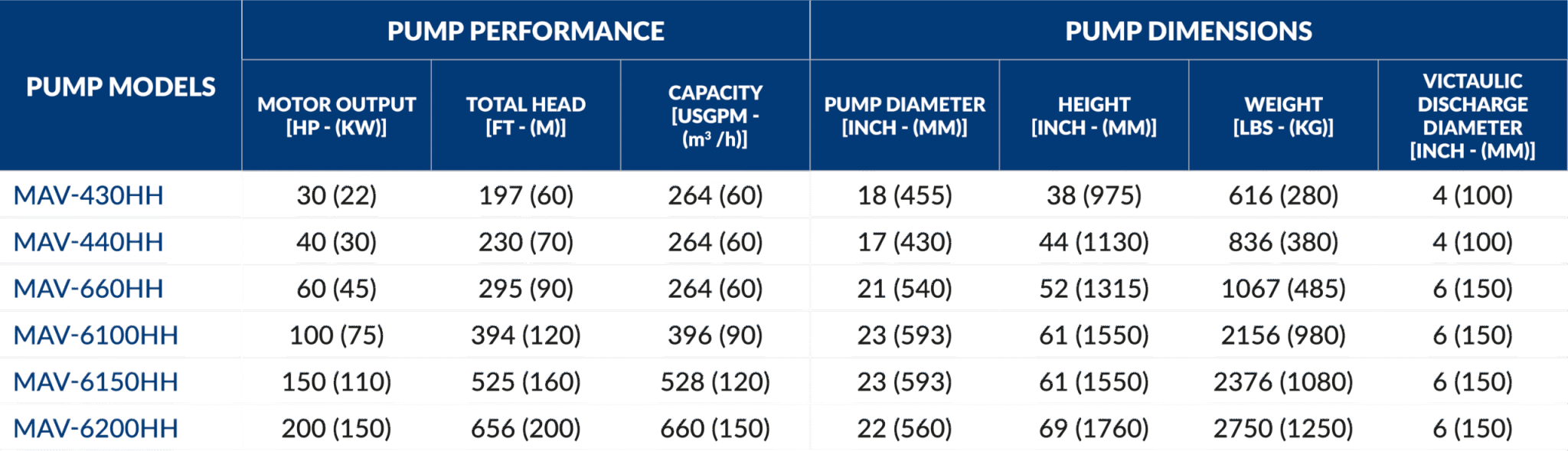

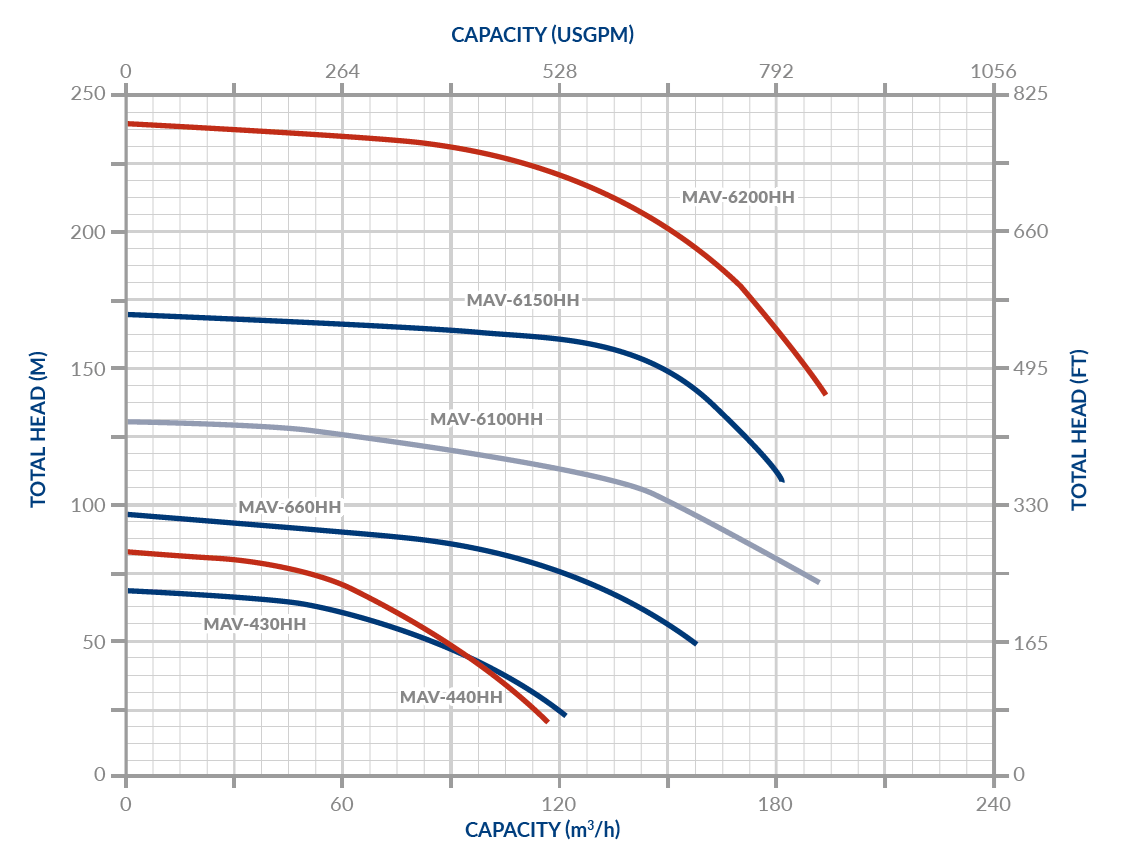

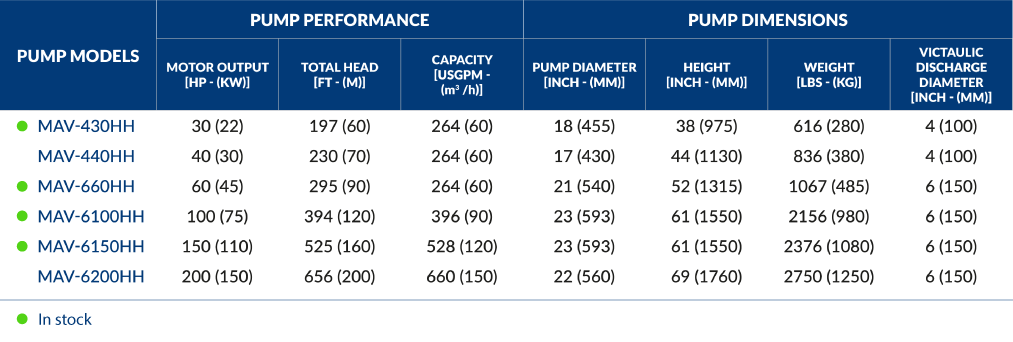

Specifications
