Open-pit pumping system - Hurricane™ series

Custom made Open-pit pumping systems – Hurricane

hurricane

Maximum capacity : Up to 10000 US gpm (2275 m3/hr)

Maximum pressure : Up to 700 m TDH (customizable)

Designed for solid concentration : Up to 20%

Victaulic discharge connections : From 4" to 16"

Rating : Up to 5400 HP (4020 kW)

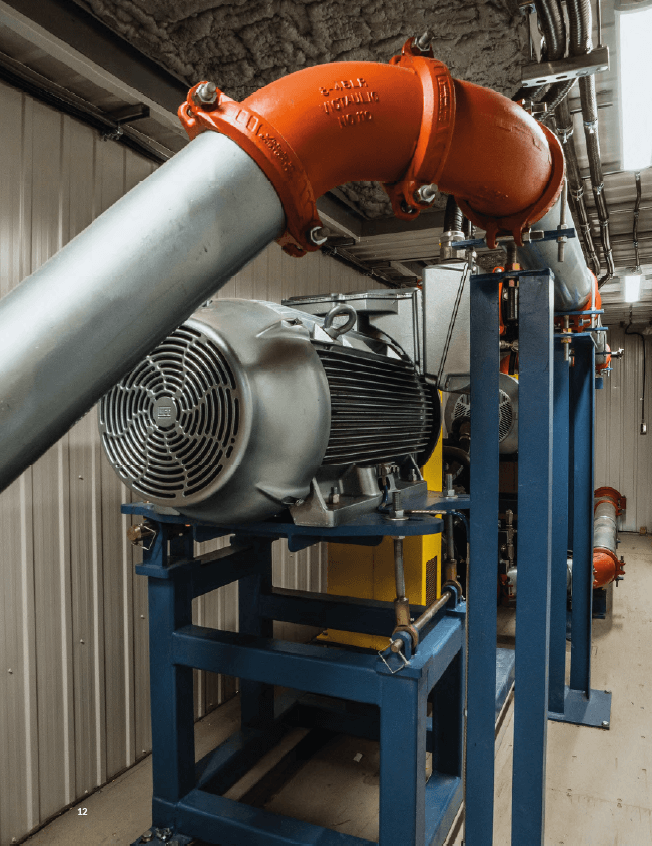

The Hurricane™ Series incorporate pumping systems tailored to customer’s specific needs and built for open-pit dewatering. They combine horizontal centrifugal pumps customized to adapt to all types of applications. They are designed and built in a self-contained portable pump box. HUR pumps come with controllers for easier management of pumping operations. The Hurricane™ Series can pump solid concentrations up to 20% and ensure a pressure of 700 m TDH. These pumps have a capacity up to 2275 m³/h (10 000 USGPM) and power up to 5400 HP.

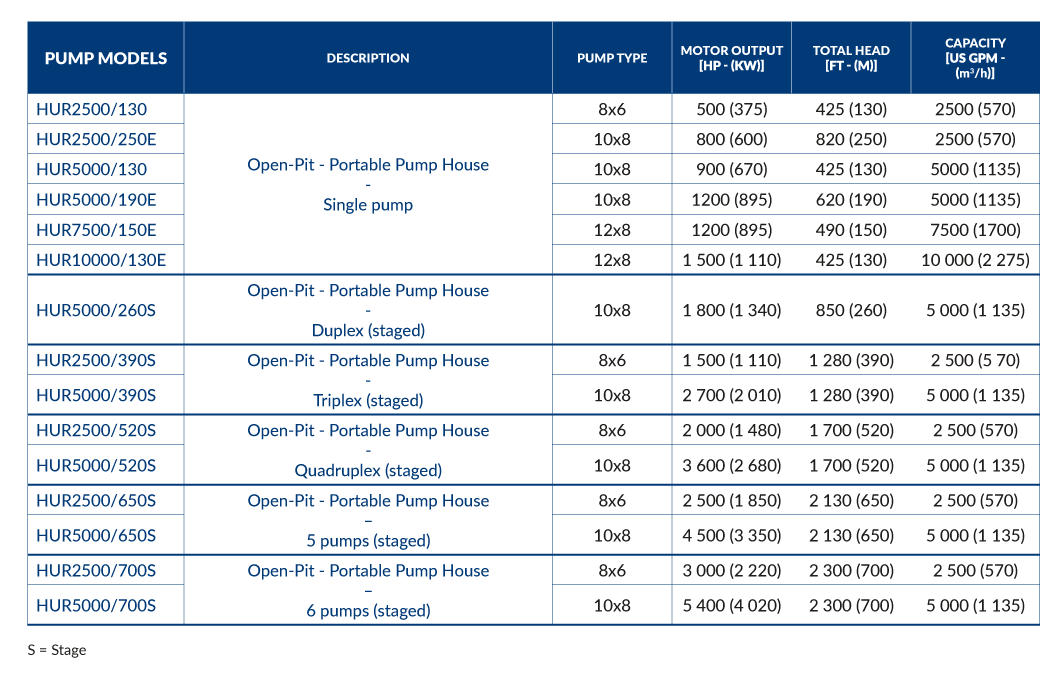

Specifications
